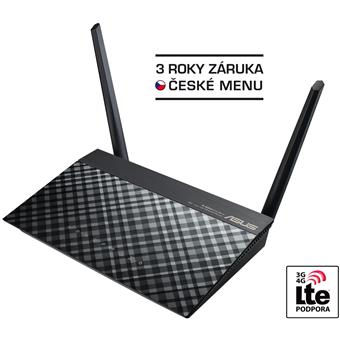

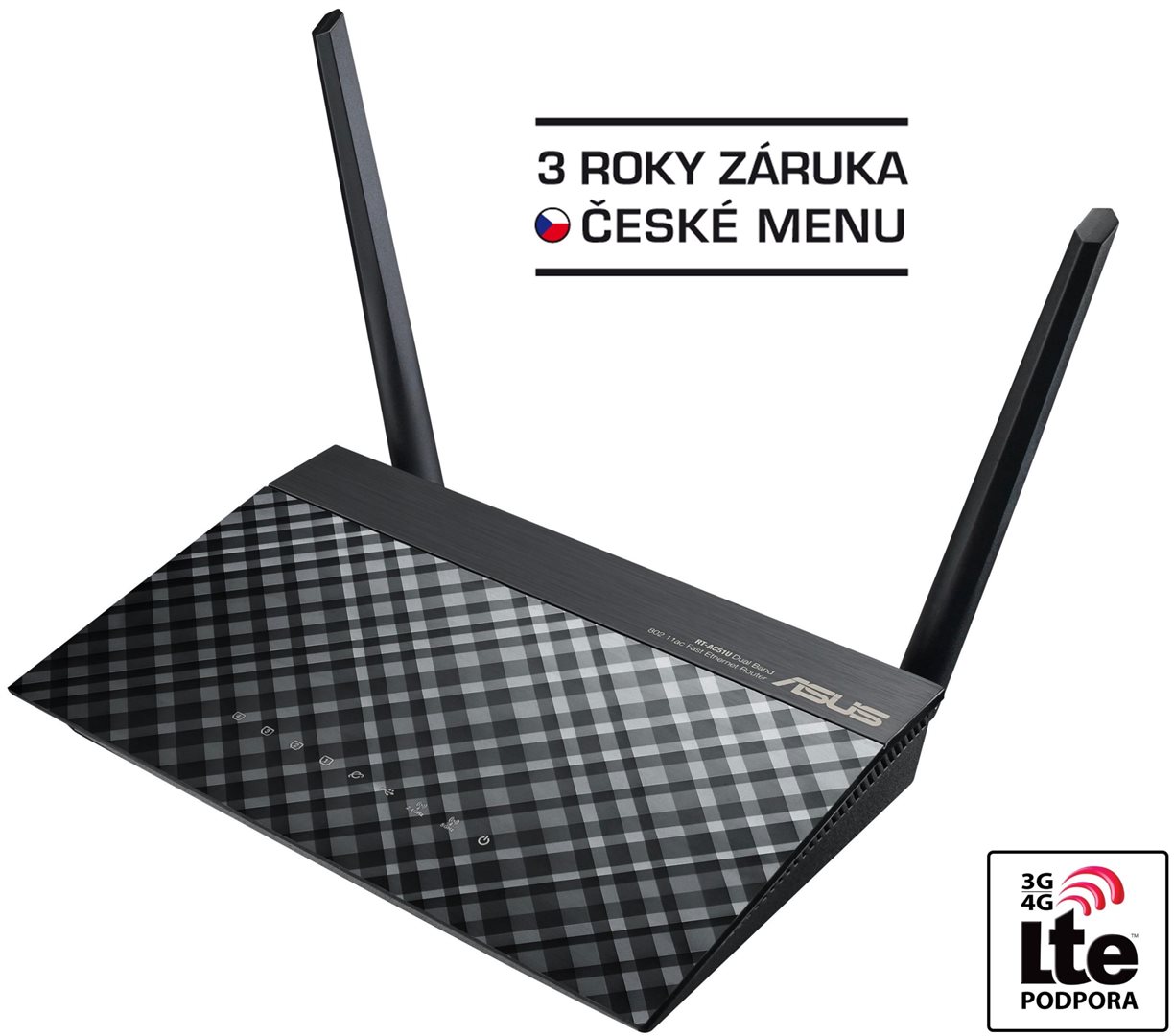

ASUS RT-AC51U AC750 DualBand-router RT-AC51U

ASUS RT-AC51U

PŘEHLED

• 802.11ac dual-band wireless at up to 733 Mbps for high-performance wireless
• Expanded wireless coverage with two detachable high-gain antennas
• USB port for printer networking, storage sharing, or 3G/4G connections
• ASUS AiCloud app to access, sync, share and stream your files on the go -quickly and easily
• Easy 30 second setup and robust controls like network monitoring through ASUSWRT dashboard

SPECIFIKACE
Network Standard

• IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6

Product Segment

• AC750 complete AC performance; 300+433 Mbps

Data Rate

• 802.11a : 6,9,12,18,24,36,48,54 Mbps
• 802.11b : 1, 2, 5.5, 11 Mbps
• 802.11g : 6,9,12,18,24,36,48,54 Mbps
• 802.11n : up to 300 Mbps
• 802.11ac: up to 433 Mbps

Antenna

• Fixed 5 dBi antenna x 2
• Internal PCB antenna x 1

Operating Frequency

• 2.4GHz/5GHz

Encryption

• 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, WPS support

Firewall & Access Control

• Firewall: SPI intrusion detection
• Access control: Guest access, Parental control, Network service filter, URL/Port filter

VPN Support

• IPSec Pass-Through
• L2TP Pass-Through
• PPTP server
• OpenVPN server
• OpenVPN client

WAN Connection Type

• Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
• Dual Link support
• Multicast Proxy support

Utilities

• Download master:

- Support BT, NZB, HTTP, ED2K
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling

• Media server:

- Image: JPEG
- Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov

• Professional QoS:

- WMM
- User definable rules for IP/MAC/Port
- Upload and Download bandwidth management
- ACK/SYN/FIN/RST/ICMP with Highest priority

• Guest Access:

- 2.4GHz guest network x 3, 5GHz guest network x 3

• Printer Server:

- Multifunctional printer support(Windows only)
- LPR protocol support

• File server:

- Samba and FTP server with account management

• Network map
• Traffic monitor

Ports

• 1 x RJ45 for 10/100 BaseT for WAN, 4 x RJ45 for 10/100 BaseT for LAN
• USB 2.0 x 1

Button

• WPS Button, Reset Button, Power Button, Wireless on/off Button

LED Indicator

• USB x 1
• LAN x 1
• Wi-Fi x 1
• WAN x 1
• PWR x 1

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 12 V with max. 1 A current

OS Support

• Windows® 8 , 32bit/64bit
• Windows® 7 , 32bit/64bit
• Windows® Vista , 32bit/64bit
• Windows® 2000
• Windows® XP , 32bit/64bit
• Windows® Server 2003
• Windows® Server 2008
• Mac OS X 10.1
• Mac OS X 10.4
• Mac OS X 10.5
• Mac OS X 10.6
• Mac OS X 10.7
• Mac OS X 10.8
• Mac OS X
• Linux Kernel (Support Ubuntu only)
• Linux
• AndroidTM

Dimensions

• 189 x 129 x 36 ~ mm (WxDxH)

Weight

• 270 g

Package Content

• RT-AC51U Wireless-AC750 Cloud Router
• RJ-45 Cable
• Power Adapter
• Quick Start Guide
• Warranty Card
• Support CD (User manual & Utility software)

Router Special Features

• 3G/4G data sharing, AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control

Operation mode

• Wireless router mode
• Access point mode
